T10E/T12E Plus

Product Highlights

Brand	JLG
Model	T12E Plus
Working height	12.65m
Platform height	10.65m
Working Outreach	6.05m
Lift capacity	200kg
Drive speed – stowed	6.0 km/h
Drive speed – raised	0.6 km/h
Gradeability – stowed	25%
Turning radius – inside	0.75m
Turning radius – outside	2.60m
Tires – (solid non-marking)	406 x 125mm/solid (16×5”)
Power	48 V DC (8 cells 6 V batteries 260 AH capacity)
Weight	4,900 kg

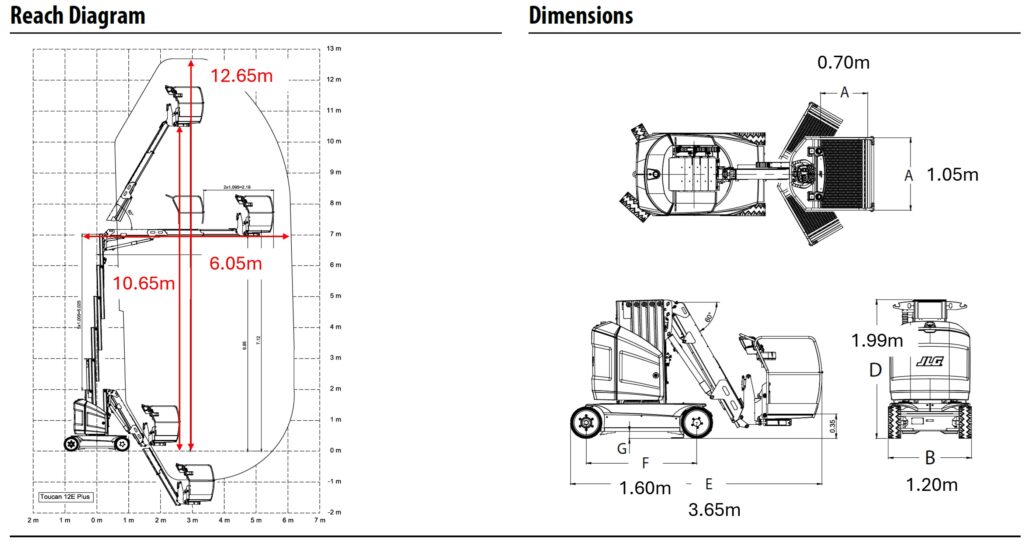

Measurements

Productivity

• 0.70 m x 1.05 m (L x W) steel platform
• Slide bar rear entry
• Full proportional drive and slew joystick control with integral thumb steer switch
• Mini joysticks provide proportionalmast, telescope and jib lift/lower functions
• 4.14 m articulating jib
• Function enable with enlarged LCD function status display
• Load sensing system
• AC power cable to platform
• Large tool tray
• Two wheel direct electric drive
• Brushless AC drive motors
• Powered battery fill
• Auto power save when idle
• Low charge function cut-out
• On-board diagnostics with integral display
• Automatic rear wheel brakes
• Sculptured polyester hoods
• Powered platform rotation
• Heavy duty steel roller mast with 345º rotation
• Chain slack detection system
• 3 degree tilt alarm and indicator light
• 1.20 m wide frame
• Lifting /tie down rings
• Ground control selector switch with key lock
• Battery discharge indicator
• Hour meter
• Horn
• Drive orientation system
• Lanyard anchor points
• Zenon strobe light
• Manual descent system
• Passive pothole protection system

Options

• AGM batteries
• Non-marking tire foam-filled
